Home Products Acrylic Panels For Swimming Pool

Full Set 50mm 80mm Plexiglass Wall Acrylic Sheets Glass Swimming Pool for Diaphaneity

Name: Full Set 50mm 80mm Plexiglass Wall Acrylic Sheets Glass Swimming Pool for Diaphaneity
Brand: HuiZhou AUPOOL Technology Co.LTD
SKU: AUPOOL-infinitive pool
Price: 273.00 USD
Availability: InStock

All Products

Prefab Acrylic Pool
(176)

Acrylic Panels For Swimming Pool
(320)

Endless Pool Machine
(13)

Swimming Pool Equipment
(32)

Acrylic Swimming Pool
(1)

Swimming Pool Acrylic Panels Sample
(5)

Certification

I'm Online Chat Now

Full Set 50mm 80mm Plexiglass Wall Acrylic Sheets Glass Swimming Pool for Diaphaneity

Large Image : Full Set 50mm 80mm Plexiglass Wall Acrylic Sheets Glass Swimming Pool for Diaphaneity

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	AUPOOL
Model Number:	AUPOOL-infinitive pool

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$273.00/square meters
Packaging Details:	Clear acrylic swimming pool panels cheap cost of acrylic glass sheet for swimming pool <br>Our Curved Acrylic Panel is packed with PE film, then protect with Polyethylene foamed sheet, then surrounded with wooden board and PE film , finally packed with ste
Supply Ability:	20000 Square Meter/Square Meters per Month

Contact Now

Full Set 50mm 80mm Plexiglass Wall Acrylic Sheets Glass Swimming Pool for Diaphaneity

Description

Type:	Pool	Product Name:	Acrylic Transparent Swimming Pool
Application:	Villa Pool	Material:	Acrylic-100% Virgin PMMA Imported
Accessories:	Air Pump	Warranty:	30 Years Outdoor Use Non-yellowing
Color:	Transparent	Keyword:	Acrylic Swimming Pool Villa Pool Jacuzzi
Diaphaneity:	High Light Transmission(93%)	Usage:	Family Swimming Pool
Function:	Swimming Season	Port:	Shenzhen

Clear Outdoor Acrylic Swimming Pool Made by AUPOOL

Acrylic Panel Specifications

PROPERTIES	VALUES	RULES
Density	1.19 g/cm3	ISO 1183-1:2012 Method A
Rockwell Hardness	112L	ISO 2039-2:1999
Tensile Modulus	3150MPa	EN ISO 527:2012
Tensile Strength	80.0MPa	EN ISO 527:2012
Tensile Strain at Break	3.2%	EN ISO 527-1:2012
Water Absorption	0.20%	ISO 62:2008 Method 1
Total Luminous Transmittance	93.4%	ISO 13468-1:1996
Vicat Softening Temperature	105℃	ISO 306:2013 Method B50
Light Ageing Test- UV Exposure	Grey scale: 5	ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion	72×10-6 K-1	ISO 11359-1:2014
Compressive Stress at Yield	129MPa	EN ISO 604:2003
Flexural Strength	120MPa	ISO 178:2013
Compressive Yield Strength	111MPa	ASTM D695-15
Compressive Modulus	3450MPa	ASTM D695-15
Shear Strength	59.7MPa	ASTM D732-17
Deflection Temperature under Load	100.2℃	ASTM D648-18 Method B
Modulus Elasticity	2810MPa	ASTM D695-15

Raw materials	100% Lucite MMA materials
Thickness	30-150mm one time casting, 150-950mm mm Multi-plate composite overlay
Color	Transparent(transparent 93%) of cast acrylic panel
MOQ	1 PCS acrylic panel/curve/tunnel/L shape acrylic panel
Below molding sizes are for your reference. Please note that: below size (molding size) ≠ panel net size
Size	Thickness	Size	Thickness
1300x2500mm	30-70mm	1350x2650mm	30-100mm
1450x2700mm	30-100mm	1600x2600mm	30-100mm
1650x3150mm	30-100mm	2200x3200mm	30-110mm
1650x3500mm	30-100mm	2750x4250mm	30-130mm
1800x5000mm	30-150mm	2100x5500mm	30-150mm
3000x6200mm	50-250mm	3000x6700mm	50-250mm
3000x8200mm	80-250mm	3000*8700mm	80-250mm
3000x11500mm	100-250mm	3700x8100mm	120-300mm
Generally, Our factory introducing the use of acrylic panels into architectural project such as oversize aquarium,outdoor swimming pool and water feature.

Products Description

AUPOOL Acrylic Panel

1. Professional Acrylic Swimming Pool Manufacturer

2. Dry constant temperature polymerization technology

3. Outdoor non-yellowing 30 years warranty

4. 93% high transparency

5. Easy installations & cleaning

6. More than 30 patents

AUPOOL Acrylic Panel

AUPOOL is one of top 3 world largest manufacturers of cast acrylic block.

Pool builders and others can count on us to have the materials they need. We have a large inventory at our Huizhou fabrication centre.

We cut, shape and bond made-to-measure acrylic windows here in China. Installation services also available if needed.

Click Here to Contact Us, We Will Show You More Cases and Our New Products

Products and Applications

Why Choose Us

Strong Production Capacity

7-15 days short production time, huge stock, large capacity.

Flat surface

Milling surface smooth on each panel

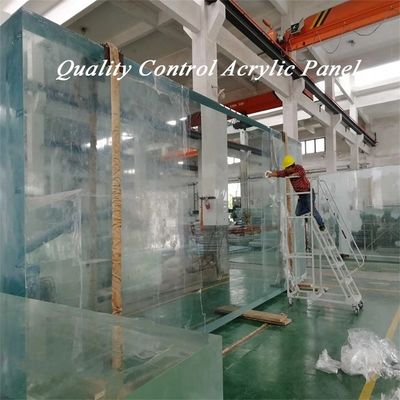

QC

Examine the interior of each Acrylic Panel under light

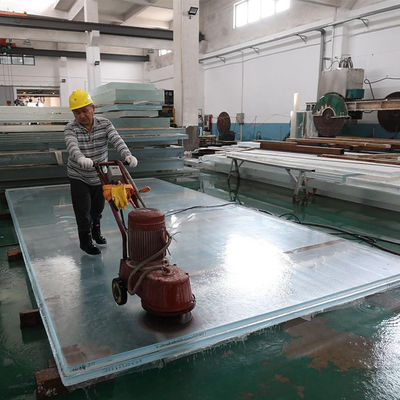

Dry thermostatic polymerization

Due to high technical barriers, only three companies in the world have mastered this process, which essentially solves the problem of acrylic turning yellow under light.

Flexible material

Flexural fracture resistance is very good, laboratory test bending deformation of 50% of the length dimension, hold for 1000 hours, no fracture marks

Strong impact resistance and safety

12 times that of tempered glass, 160 times that of ordinary glass, and will not automatically explode the board

How to order

Which one do you like, please let me know.

Acrylic in pool

1.Tell us the size

Tell us your swimming pool length,width and height,water level.It is better have design file.

2.Draft Design

By finite element analysis,we sure the thickness of acrylic,we draw design for you.

3.Production

We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you

4.Installation

We provide you installation guide,our engineer can go to your side to do installation if necessary

Company Profile

AUPOOL is a professional manufacturer of transparent acrylic swimming pools. We are the only company in China that uses British
100% Lucite PMMA raw material and dry constant temperature polymerization process to make the acrylic board not yellow and crack
for 30 years outdoors. Welcome your consultation, we will provide you with private professional services 24 hours a day.

Certifications

Packing & Delivery

FAQ

QI. What is your terms of packing? A: 1. use film to cover the surface of the swimming pools and bathtub.

2. use EPE to wrap up swimming pools and bathtub;

3. use foam to protect the frame of swimming pools and bathtub;

4. wooden case could make sure strong protection.

Q2. What is your terms of payment? A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. How about your delivery time? A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7. How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit

2. We respect every customer as out friend and we sincerely do business and make friends with them,no matter where they come from.

Contact Details

HuiZhou AUPOOL Technology Co.LTD

Contact Person: Mr. Lu

Tel: 8613751079807
