Acrylic Swimming Pool Bottom Pool Spliced Together For Villa Jacuzzi And More

Large Image : Acrylic Swimming Pool Bottom Pool Spliced Together For Villa Jacuzzi And More

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	AUPOOL
Model Number:	AUPOOL-infinitive pool

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$273.00/square meters
Packaging Details:	Clear acrylic swimming pool panels cheap cost of acrylic glass sheet for swimming pool <br>Our Curved Acrylic Panel is packed with PE film, then protect with Polyethylene foamed sheet, then surrounded with wooden board and PE film , finally packed with ste
Supply Ability:	20000 Square Meter/Square Meters per Month

Contact Now

Acrylic Swimming Pool Bottom Pool Spliced Together For Villa Jacuzzi And More

Description

Type:	Pool	Product Name:	Acrylic Transparent Swimming Pool
Application:	Villa Pool	Material:	Acrylic-100% Virgin PMMA Imported
Accessories:	Air Pump	Warranty:	30 Years Outdoor Use Non-yellowing
Color:	Transparent	Keyword:	Acrylic Swimming Pool Villa Pool Jacuzzi
Diaphaneity:	High Light Transmission(93%)	Usage:	Family Swimming Pool
Function:	Swimming Season	Port:	Shenzhen

Clear Outdoor Acrylic Swimming Pool Made by AUPOOL

Acrylic Panel Specifications

PROPERTIES	VALUES	RULES
Density	1.19 g/cm3	ISO 1183-1:2012 Method A
Rockwell Hardness	112L	ISO 2039-2:1999
Tensile Modulus	3150MPa	EN ISO 527:2012
Tensile Strength	80.0MPa	EN ISO 527:2012
Tensile Strain at Break	3.2%	EN ISO 527-1:2012
Water Absorption	0.20%	ISO 62:2008 Method 1
Total Luminous Transmittance	93.4%	ISO 13468-1:1996
Vicat Softening Temperature	105℃	ISO 306:2013 Method B50
Light Ageing Test- UV Exposure	Grey scale: 5	ISO 4892-3:2016 Cycle 1
Mean Coefficient of Linear Thermal Expansion	72×10-6 K-1	ISO 11359-1:2014
Compressive Stress at Yield	129MPa	EN ISO 604:2003
Flexural Strength	120MPa	ISO 178:2013
Compressive Yield Strength	111MPa	ASTM D695-15
Compressive Modulus	3450MPa	ASTM D695-15
Shear Strength	59.7MPa	ASTM D732-17
Deflection Temperature under Load	100.2℃	ASTM D648-18 Method B
Modulus Elasticity	2810MPa	ASTM D695-15

Raw materials	100% virgin of Lucite MMA materials
Thickness	30-150mm one time casting, 150-950mm mm Multi-plate composite overlay
Color	Transparent(transparent 93%) of cast acrylic panel
MOQ	1 PCS acrylic panel/curve/tunnel/L shape acrylic panel
Below molding sizes are for your reference. Please note that: below size (molding size) ≠ panel net size
Size	Thickness	Size	Thickness
1300x2500mm	30-70mm	1350x2650mm	30-100mm
1450x2700mm	30-100mm	1600x2600mm	30-100mm
1650x3150mm	30-100mm	2200x3200mm	30-110mm
1650x3500mm	30-100mm	2750x4250mm	30-130mm
1800x5000mm	30-150mm	2100x5500mm	30-150mm
3000x6200mm	50-250mm	3000x6700mm	50-250mm
3000x8200mm	80-250mm	3000*8700mm	80-250mm
3000x11500mm	100-250mm	3700x8100mm	120-300mm
Generally, Our factory introducing the use of acrylic panels into architectural project such as oversize aquarium,outdoor swimming pool and water feature.

Products Description

AUPOOL Acrylic Panel

1. Professional Acrylic Swimming Pool Manufacturer

2. Dry constant temperature polymerization technology

3. Outdoor non-yellowing 30 years warranty

4. 93% high transparency

5. Easy installations & cleaning

6. More than 30 patents

AUPOOL Acrylic Panel

AUPOOL is one of top 3 world largest manufacturers of cast acrylic block.

Pool builders and others can count on us to have the materials they need. We have a large inventory at our Huizhou fabrication centre.

We cut, shape and bond made-to-measure acrylic windows here in China. Installation services also available if needed.

Click Here to Contact Us, We Will Show You More Cases and Our New Products

Products and Applications

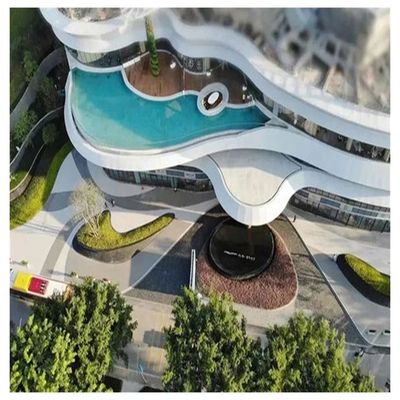

Rooftop transparent swimming pool at Khai Hoan Hotel, Vietnam (2016)

Lingyun Pavilion suspended transparent swimming pool in Malaysia (2015)

Yingkou Bayu Bay Magic Hot Spring Park Hanging Transparent Swimming Pool (2020)

Sunshine One Hotel Haitang Bay Sanya suspended transparent swimming pool (2020)

Why Choose Us

Strong Production Capacity

7-15 days short production time, huge stock, large capacity.

Flat surface

Milling surface smooth on each panel

QC

Examine the interior of each Acrylic Panel under light

Dry thermostatic polymerization

Due to high technical barriers, only three companies in the world have mastered this process, which essentially solves the problem of acrylic turning yellow under light.

Flexible material

Flexural fracture resistance is very good, laboratory test bending deformation of 50% of the length dimension, hold for 1000 hours, no fracture marks

Strong impact resistance and safety

12 times that of tempered glass, 160 times that of ordinary glass, and will not automatically explode the board

How to order

Which one do you like, please let me know.

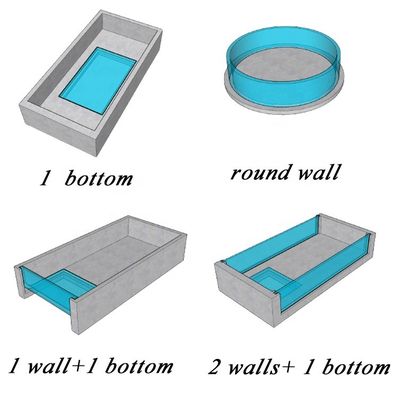

Acrylic in pool

1.Tell us the size

Tell us your swimming pool length,width and height,water level.It is better have design file.

2.Draft Design

By finite element analysis,we sure the thickness of acrylic,we draw design for you.

3.Production

We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you

4.Installation

We provide you installation guide,our engineer can go to your side to do installation if necessary

Company Profile

Our company is at the forefront of technological innovation with our advanced dry constant-temperature polymerization process, ensuring top-notch performance and safety in all of our products. Our unique and thoughtful designs in material application have garnered widespread acclaim from clients around the world, including design firms, real estate developers, hotel operators, pool contractors, landscaping companies, and villa owners in North and South America, Europe, Australia, and beyond. Our commitment to excellence extends beyond product quality and design to our production processes, where we employ state-of-the-art seamless splicing techniques. Additionally, we have revolutionized the way we engage with clients by offering stage-by-stage service contracts that mitigate the risk of loss for our customers. Our track record speaks for itself, having partnered with top-tier clients such as the five-star hotel in Nairobi, Kenya, the Kinta Riverfront Hotel in Ipoh, Malaysia, the Kaiden five-star hotel in Jakarta, Indonesia, and the Sentosa Yacht Club in Singapore. We are proud of our reputation as an industry leader, continuously pushing the boundaries of what is possible and setting new standards for quality and innovation.

Certifications

Packing & Delivery

FAQ

Q1. What types of international clients has the company worked with, and can you provide examples of specific projects they have collaborated on? The company has worked with various types of international clients including design companies, real estate developers, hotel operators, pool engineering firms, landscaping companies, and villa owners in South America, North America, Europe, and Australia. Some examples of projects they have collaborated on include the five-star hotels in Nairobi, Kenya, Ipoh, Malaysia, Jakarta, Indonesia, and the yacht club in Sentosa, Singapore. Q2. Who are some of the company's domestic partners in the real estate and hotel industries in China, and what are some of the notable projects they have worked on together? The company has collaborated with domestic partners such as Shimao Group, Fosun Real Estate, Sunac China, China Overseas Property, Qinchengda Real Estate, JLL Group, Poly Property, Qiaoxin Real Estate, Vanke, Sanzheng Real Estate, and Taikoo Hui on various real estate and hotel projects. Notable projects they have worked on together include the Half-Mountain Hotel in Sanzheng, Sanya Atlantis Hotel, Sunshine One Hotel in Sanya, Shenzhen Hotel, and InterContinental Hotel. Q3. Can you name some of the design companies and equipment engineering firms that the company has collaborated with, and in what capacity have they worked together on projects? Some of the design companies and equipment engineering firms that the company has collaborated with include CCD, Gao Wen'an, and SL.D for design, and Daisylec for equipment engineering. They have worked together on various projects, such as designing the interior of hotels and villas, and providing equipment and technology solutions for the swimming pools in these facilities.
