Swimming Season AUPOOL High Transparent Acrylic Swimming Pool with Window and Spa

Name: Swimming Season AUPOOL High Transparent Acrylic Swimming Pool with Window and Spa
Brand: HuiZhou AUPOOL Technology Co.LTD
SKU: AUPOOL-transparent pool
Price: Negotiable USD
Availability: InStock

All Products

Prefab Acrylic Pool
(176)

Acrylic Panels For Swimming Pool
(320)

Endless Pool Machine
(13)

Swimming Pool Equipment
(32)

Acrylic Swimming Pool
(1)

Swimming Pool Acrylic Panels Sample
(5)

Certification

I'm Online Chat Now

Swimming Season AUPOOL High Transparent Acrylic Swimming Pool with Window and Spa

Large Image : Swimming Season AUPOOL High Transparent Acrylic Swimming Pool with Window and Spa

Product Details:

Place of Origin:	Guangdong, China
Brand Name:	AUPOOL
Model Number:	AUPOOL-transparent pool

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$273.00/square meters >=1 square meters
Packaging Details:	Clear acrylic swimming pool panels cheap cost of acrylic glass sheet for swimming pool <br>Our Curved Acrylic Panel is packed with PE film, then protect with Polyethylene foamed sheet, then surrounded with wooden board and PE film , finally packed with ste
Supply Ability:	20000 Kilogram/Kilograms per Month

Contact Now

Swimming Season AUPOOL High Transparent Acrylic Swimming Pool with Window and Spa

Description

Type:	Pool	Product Name:	Acrylic Transparent Swimming Pool
Application:	Villa Pool	Material:	Acrylic-100% Virgin PMMA Imported
Accessories:	Air Pump	Warranty:	30 Years Outdoor Use Non-yellowing
Color:	Transparent	Keyword:	Acrylic Swimming Pool Villa Pool Jacuzzi
Diaphaneity:	High Light Transmission(93%)	Usage:	Family Swimming Pool
Function:	Swimming Season	Port:	Shenzhen

Clear Outdoor Acrylic Swimming Pool Made by AUPOOL

Our advantage

1.Professional Acrylic Swimming Pool Manufacturer

2.Dry constant temperature polymerization technology

3.Outdoor non-yellowing 30 years warranty

4.93% high transparency

5.Easy installations & cleaning

Products Description

Raw materials	100% virgin of Lucite MMA materials
Thickness	30-150mm one time casting, 150-950mm mm Multi-plate composite overlay
Color	Transparent(transparent 93%) of cast acrylic panel
MOQ	1 PCS acrylic panel/curve/tunnel/L shape acrylic panel
Below molding sizes are for your reference. Please note that: below size (molding size) ≠ panel net size
Size	Thickness	Size	Thickness
1300x2500mm	30-70mm	1350x2650mm	30-100mm
1450x2700mm	30-100mm	1600x2600mm	30-100mm
1650x3150mm	30-100mm	2200x3200mm	30-110mm
1650x3500mm	30-100mm	2750x4250mm	30-130mm
1800x5000mm	30-150mm	2100x5500mm	30-150mm
3000x6200mm	50-250mm	3000x6700mm	50-250mm
3000x8200mm	80-250mm	3000*8700mm	80-250mm
3000x11500mm	100-250mm	3700x8100mm	120-300mm
Generally, Our factory introducing the use of acrylic panels into architectural project such as oversize aquarium,outdoor swimming pool and water feature.

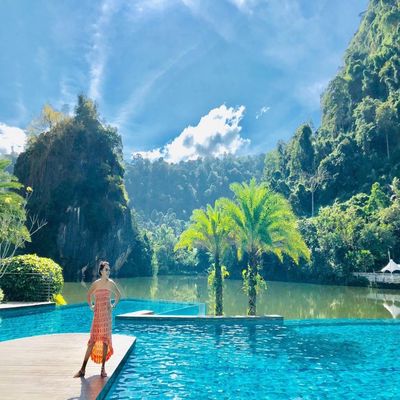

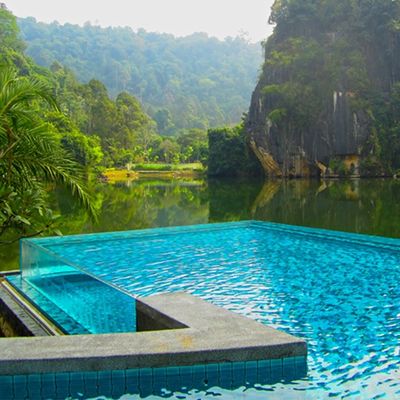

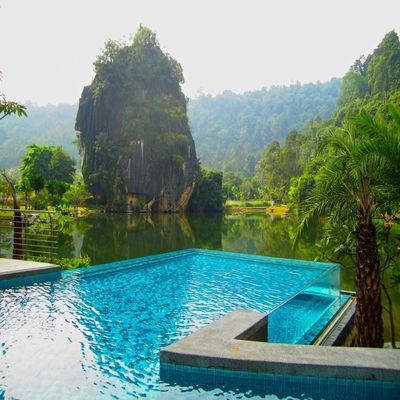

Haven at Tambun, Ipoh, Malaysia 2012

The lakefront acrylic infinity pool overviewing the panaromic view of the private lake in this development. The 1.2m overflowing acrylic featured wall created a seemless barriel which connecting the pool and lake.

Click Here to Contact Us, We Will Show You More Cases and Our New Products

Products and Applications

Rooftop transparent swimming pool at Khai Hoan Hotel, Vietnam (2016)

The rooftop swimming pool of Khai Hoan Hotel uses acrylic thick plates as the transparent swimming pool side and bottom plates,and adopts the world's leading water circulation system and constant temperature system, which has excellent weather resistance,safety and aesthetics.

Lingyun Pavilion suspended transparent swimming pool in Malaysia (2015)

The bottom of the swimming pool is made of three acrylic and reinforced concrete structures spliced together. The maximum size of a single acrylic panel window is 9m*6m, setting a world record for the world's largest single-panel acrylic suspended swimming pool (2015-2021).

Yingkou Bayu Bay Magic Hot Spring Park Hanging Transparent Swimming Pool (2020)

During the construction, the impact of the earthquake zone in the area was overcome, and the seismic resistance, safety and installation accuracy requirements of the plates all reached the international high standards; at the same time, the plates with excellent weather resistance were used, which was completely free from the extreme environment with a temperature difference of 60°C between inside and outside. The transparent part covers an area of 260 square meters, setting a world record for the largest suspended transparent swimming pool in the world at that time.

Sunshine One Hotel Haitang Bay Sanya suspended transparent swimming pool (2020)

The World's Largest Suspended Transparent Swimming Pool Sunshine One Hotel Haitang Bay SANYA

It is 63 meters long and 23 meters wide. The bottom plate is made of 280mm thick acrylic plate, and the side plate is made of 160mm thick acrylic plate. The transparent part covers an area of 820 square meters. World record for swimming pools.

Why Choose Us

Strong Production Capacity

7-15 days short production time, huge stock, large capacity.

Flat surface

Milling surface smooth on each panel

QC

Examine the interior of each Acrylic Panel under light

Dry thermostatic polymerization

Due to high technical barriers, only three companies in the world have mastered this process, which essentially solves the problem of acrylic turning yellow under light.

Flexible material

Flexural fracture resistance is very good, laboratory test bending deformation of 50% of the length dimension, hold for 1000 hours, no fracture marks

Strong impact resistance and safety

12 times that of tempered glass, 160 times that of ordinary glass, and will not automatically explode the board

How to order

1.Tell us the size

Tell us your swimming pool length,width and height,water level.It is better have design file.

2.Draft Design

By finite element analysis,we sure the thickness of acrylic,we draw design for you.

3.Production

We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you

4.Installation

We provide you installation guide,our engineer can go to your side to do installation if necessary

Company Profile

Certifications

AUPOOL has more than 30 patented technologies.

Packing & Delivery

FAQ

QI. What is your terms of packing? A: 1. use film to cover the surface of the swimming pools and bathtub.

2. use EPE to wrap up swimming pools and bathtub;

3. use foam to protect the frame of swimming pools and bathtub;

4. wooden case could make sure strong protection.

Q2. What is your terms of payment? A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. How about your delivery time? A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7. How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit

2. We respect every customer as out friend and we sincerely do business and make friends with them,no matter where they come from.
