Backyard Infinity Edge Pool with Acrylic Glass View Window and 30-950mm Thickness

Name: Backyard Infinity Edge Pool with Acrylic Glass View Window and 30-950mm Thickness
Brand: HuiZhou AUPOOL Technology Co.LTD
SKU: AUPOOL-01
Price: Negotiable USD
Availability: InStock

All Products

Prefab Acrylic Pool
(176)

Acrylic Panels For Swimming Pool
(320)

Endless Pool Machine
(13)

Swimming Pool Equipment
(32)

Acrylic Swimming Pool
(1)

Swimming Pool Acrylic Panels Sample
(5)

Certification

I'm Online Chat Now

Backyard Infinity Edge Pool with Acrylic Glass View Window and 30-950mm Thickness

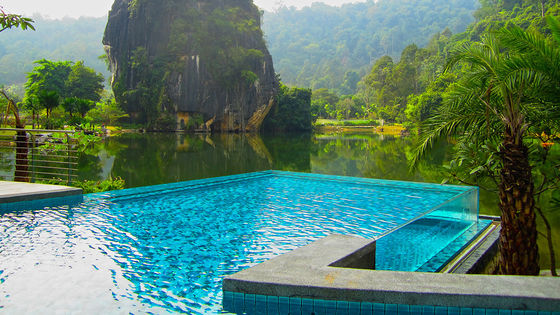

Large Image : Backyard Infinity Edge Pool with Acrylic Glass View Window and 30-950mm Thickness

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	AUPOOL, AUPOOL
Model Number:	AUPOOL-01

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$5.92 - $12.82/kilograms
Packaging Details:	1.pp bags <br>2.with wooden case
Supply Ability:	20000 Kilogram/Kilograms per Month

Contact Now

Backyard Infinity Edge Pool with Acrylic Glass View Window and 30-950mm Thickness

Description

Material:	Acrylic, Lucite Acrylic	Thickness:	30-950mm, 30-950mm
Size:	Custom, Custom	Processing Service:	Cutting, Moulding
Type:	Pool	Color:	Clear/Transparent
Density:	1.2g/cm3	Surface:	High Surface Hardness
Shape:	Custom	Diaphaneity:	High Light Transmission(92.5%)
Port:	Shenzhen

NO.	Physical Property	ISO	Unit	Result
1.	Specific gravity / density	D792	Kg/m	1175
Optical
2.	Luminous Transmittance	GB/T2410-2008	%	92.6
3.	Haze	GB/T2410-2008	%	1.8
Mechanical
4.	Tensile Strength	527-2:2012
	a) Maximum tensile strength		MPa	80.7
	b) Elongation at break		%	4
	c)Tensile modulus		MPa	3010
5.	Flexural Strength	178:2010
	a) Maximum flexural strength		MPa	87.7
	b) Maximum flexural strength		MPa	2900
6.	Comintsane Yield Stress	604:2002	MPa	No Yield Point
7.	Izod Notched Immpact Stress	D256-10 (Method c)	J/m	8
8.	Shear Strength	D732-10	MPa	62.5
9.	Rockwell Hardness	2039-2:1987	HRL	105
Thermal
10.	Flammability	UL94-2013 (7)	mm/min	24.1
11.	Heat Deflection Temperature	75-2:2013(Method B)	°C	106.2
12.	Glass Transition Temperature	11357-2:1999
	a)Teig		°C	105.6
	b)Tmg		°C	114.0
	c)Tefg		°C	122.3
13.	Coefficient of Linear Thermal Expansion	11359-2:1999	°C	-40 to 110
	a)Parallel to flow		um/m-°C	78.60
	b)Perpendicular to flow		um/m-°C	80.56
Others
14.	Water Absorption	62:2008	%	0.12
15.	Odor			None
16.	Taste			None

Why Choose Us

Strong Production Capacity

7-15 days short production time, huge stock, large capacity.

Flat surface

Milling surface smooth on each panel

QC

Examine the interior of each Acrylic Panel under light

Dry thermostatic polymerization

Due to high technical barriers, only three companies in the world have mastered this process, which essentially solves the problem of acrylic turning yellow under light.

Flexible material

Flexural fracture resistance is very good, laboratory test bending deformation of 50% of the length dimension, hold for 1000 hours, no fracture marks

Strong impact resistance and safety

12 times that of tempered glass, 160 times that of ordinary glass, and will not automatically explode the board

How to order

1.Tell us the size

Tell us your swimming pool length,width and height,water level.It is better have design file.

2.Draft Design

By finite element analysis,we sure the thickness of acrylic,we draw design for you.

3.Production

We start production,cutting,bonding,bending,polishing,QC and packing,shipping to you

4.Installation

We provide you installation guide,our engineer can go to your side to do installation if necessary

Company Profile

Certifications

Packing & Delivery

FAQ

QI. What is your terms of packing? A: 1. use film to cover the surface of the swimming pools and bathtub.2. use EPE to wrap up swimming pools and bathtub; 3. use foam to protect the frame of swimming pools and bathtub; 4. wooden case could make sure strong protection.

Q2. What is your terms of payment? A:T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance. Q3. How about your delivery time? A: Generally, it will take 7 to 30 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. Q4. Can you produce according to the samples? A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. Q5. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost. Q6. Do you test all your goods before delivery? A: Yes, we have 100% test before delivery Q7. How do you make our business long-term and good relationship? A: 1. We keep good quality and competitive price to ensure our customers benefit

2. We respect every customer as out friend and we sincerely do business and make friends with them,no matter where they come from.
